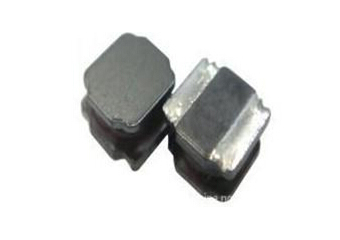

Drop impact resistance is strong, durable(抗冲击性强,经久耐用)
■ Application (用途)
●
Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移动网络和数字电影摄影机;平板电视,机顶盒,蓝光DVD、笔记本电脑、台式电脑、服务器、显卡;便携式游戏机,个人导航系统,多媒体,汽车产品;通信设备)
■ Product Identification/產品識別
NR
6020
4R7
M
S
Z
(1)
(2)
(3)
(4）
（5）
（6）
1.
Series name/產品名稱
2.
Dimensions/產品尺寸
3.
Inductance value/電感值
4.
Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.
Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.
The packing way/包裝方式（Z:冷封裝，R:熱封裝）

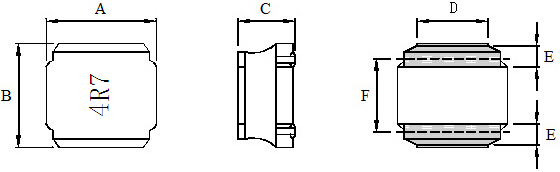

■ Mechanical dimensions/機械尺寸
Unit In mm
Type
A
B
C
D
E
F
±0.3
±0.3
(max)
±0.3
±0.3
±0.3
NR6015
6.0
6.0
1.50
4.90
1.55
2.90
NR6020
6.0
6.0
2.00
4.00
1.25
2.50
NR6028
6.0
6.0
2.80
4.00
1.25
2.50
NR6045
6.0
6.0
4.50
4.00
1.25
2.50
■Electrical Characteristics for CR6015 Series/CR6015系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR6015-1R2□-S-Z
1.2
100KHZ/0.25V
35.0
4.20
NR6015-2R2□-S-Z
2.2
100KHZ/0.25V
50.0
3.10
NR6015-3R3□-S-Z
3.3
100KHZ/0.25V
60.0
2.60
NR6015-4R7□-S-Z
4.7
100KHZ/0.25V
90.0
2.10
NR6015-6R8□-S-Z
6.8
100KHZ/0.25V
115.0
1.80
NR6015-100□-S-Z
10.0
100KHZ/0.25V
155.0
1,45
NR6015-150□-S-Z
15.0
100KHZ/0.25V
220.0
1.20
NR6015-220□-S-Z
22.0
100KHZ/0.25V
320.0
1.00
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR6020 Series/CR6020系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR6020-1R0□-S-Z
1.0
100KHZ/0.25V
20.0
4.30
NR6020-1R5□-S-Z
1.5
100KHZ/0.25V
25.0
4.25
NR6020-2R2□-S-Z
2.2
100KHZ/0.25V
35.0
3.75
NR6020-3R3□-S-Z
3.3
100KHZ/0.25V
45.0
3.15
NR6020-4R7□-S-Z
4.7
100KHZ/0.25V
58.0
3.00
NR6020-5R6□-S-Z
5.6
100KHZ/0.25V
70.0
2.40
NR6020-6R8□-S-Z
6.8
100KHZ/0.25V
85.0
2.20
NR6020-100□-S-Z
10.0
100KHZ/0.25V
120.0
1.75
NR6020-150□-S-Z
15.0
100KHZ/0.25V
160.0
1.50
NR6020-220□-S-Z
22.0
100KHZ/0.25V
240.0
1.25
NR6020-470□-S-Z
47.0
100KHZ/0.25V
500.0
1.00
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR6028 Series/CR6028系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR6028-1R0□-S-Z
1.0
100KHZ/0.25V
10.0
5.75
NR6028-1R5□-S-Z
1.5
100KHZ/0.25V
13.0
5.60
NR6028-2R2□-S-Z
2.2
100KHZ/0.25V
20.0
5.10
NR6028-2R7□-S-Z
2.7
100KHZ/0.25V
20.0
4.80
NR6028-3R3□-S-Z
3.3
100KHZ/0.25V
25.0
4.15
NR6028-4R7□-S-Z
4.7
100KHZ/0.25V
30.0
3.70
NR6028-5R1□-S-Z
5.1
100KHZ/0.25V
43.0
3.20
NR6028-6R2□-S-Z
6.2
100KHZ/0.25V
47.0
3.05
NR6028-6R8□-S-Z
6.8
100KHZ/0.25V
50.0
2.80
NR6028-8R2□-S-Z
8.2
100KHZ/0.25V
55.0
2.50
NR6028-9R1□-S-Z
9.1
100KHZ/0.25V
74.0
2.30
NR6028-100□-S-Z
10.0
100KHZ/0.25V
76.0
2.04
NR6028-120□-S-Z
12.0
100KHZ/0.25V
80.0
1.80
NR6028-150□-S-Z
15.0
100KHZ/0.25V
125.0
1.70
NR6028-180□-S-Z
18.0
100KHZ/0.25V
130.0
1.50
NR6028-220□-S-Z
22.0
100KHZ/0.25V
140.0
1.45
NR6028-270□-S-Z
27.0
100KHZ/0.25V
155.0
1.40
NR6028-330□-S-Z
33.0
100KHZ/0.25V
185.0
1.35
NR6028-360□-S-Z
47.0
100KHZ/0.25V
215.0
1.25
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR6045 Series/CR6045系列電子特性規格
