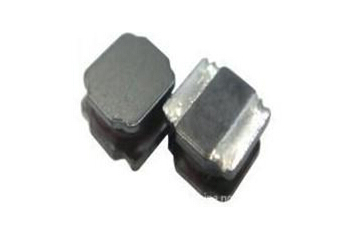

Drop impact resistance is strong, durable(抗冲击性强,经久耐用)
■ Application (用途)
●
Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移动网络和数字电影摄影机;平板电视,机顶盒,蓝光DVD、笔记本电脑、台式电脑、服务器、显卡;便携式游戏机,个人导航系统,多媒体,汽车产品;通信设备)
■ Product Identification/產品識別
NR
4012
3R3
M
S
Z
(1)
(2)
(3)
(4）
（5）
（6）
1.
Series name/產品名稱
2.
Dimensions/產品尺寸
3.
Inductance value/電感值
4.
Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.
Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.
The packing way/包裝方式（Z:冷封裝，R:熱封裝）

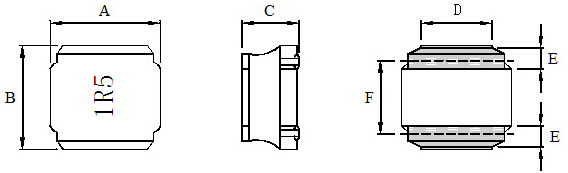

■ Mechanical dimensions/機械尺寸
Unit In mm
Type
A
B
C
D
E
F
±0.2
±0.2
(max)
±0.2
±0.2
±0.2
NR4010
4.0
4.0
1.00
3.30
0.95
2.10
NR4012
4.0
4.0
1.20
3.30
0.95
2.10
NR4015
4.0
4.0
1.65
3.30
0.95
2.10
NR4018
4.0
4.0
1.80
3.30
0.95
2.10
NR4020
4.0
4.0
2.00
3.30
0.95
2.10
NR4030
4.0
4.0
3.00
3.30
0.95
2.10
■ Electrical Characteristics for CR4010 Series/CR4010系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR4010-1R0□-S-Z
1.0
100KHZ/0.25V
56.0
2.00
NR4010-1R5□-S-Z
1.5
100KHZ/0.25V
70.0
1.68
NR4010-2R2□-S-Z
2.2
100KHZ/0.25V
85.0
1.20
NR4010-3R3□-S-Z
3.3
100KHZ/0.25V
100.0
1.10
NR4010-4R7□-S-Z
4.7
100KHZ/0.25V
140.0
0.95
NR4010-6R8□-S-Z
6.8
100KHZ/0.25V
200.0
0.80
NR4010-100□-S-Z
10.0
100KHZ/0.25V
300.0
0.62
NR4010-150□-S-Z
15.0
100KHZ/0.25V
430.0
0.54
NR4010-220□-S-Z
22.0
100KHZ/0.25V
570.0
0.45
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR4012 Series/CR4012系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR4012-R82□-S-Z
0.82
100KHZ/0.25V
50.0
3.02
NR4012-1R0□-S-Z
1.0
100KHZ/0.25V
50.0
2.61
NR4012-1R5□-S-Z
1.5
100KHZ/0.25V
65.0
2.10
NR4012-1R8□-S-Z
1.8
100KHZ/0.25V
80.0
2.12
NR4012-2R2□-S-Z
2.2
100KHZ/0.25V
85.0
1.90
NR4012-2R7□-S-Z
2.7
100KHZ/0.25V
90.0
1.76
NR4012-3R3□-S-Z
3.3
100KHZ/0.25V
110.0
1.72
NR4012-3R6□-S-Z
3.6
100KHZ/0.25V
110.0
1.20
NR4012-4R3□-S-Z
4.3
100KHZ/0.25V
140.0
1.58
NR4012-4R7□-S-Z
4.7
100KHZ/0.25V
145.0
1.15
NR4012-5R1□-S-Z
5.1
100KHZ/0.25V
155.0
1.55
NR4012-5R6□-S-Z
5.6
100KHZ/0.25V
160.0
1.00
NR4012-6R8□-S-Z
6.8
100KHZ/0.25V
198.0
0.85
NR4012-100□-S-Z
10.0
100KHZ/0.25V
265.0
0.80
NR4012-120□-S-Z
12.0
100KHZ/0.25V
290.0
0.66
NR4012-150□-S-Z
15.0
100KHZ/0.25V
340.0
0.56
NR4012-180□-S-Z
18.0
100KHZ/0.25V
470.0
0.55
NR4012-220□-S-Z
22.0
100KHZ/0.25V
587.0
0.46
★ Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR4015 Series/CR4015系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR4015-1R5□-S-Z
1.5
100KHZ/0.25V
40.0
2.70
NR4015-2R2□-S-Z
2.2
100KHZ/0.25V
53.0
2.10
NR4015-3R3□-S-Z
3.3
100KHZ/0.25V
75.0
1.90
NR4015-4R7□-S-Z
4.7
100KHZ/0.25V
100.0
1.45
NR4015-6R8□-S-Z
6.8
100KHZ/0.25V
135.0
1.30
NR4015-100□-S-Z
10.0
100KHZ/0.25V
200.0
1.10
NR4015-150□-S-Z
15.0
100KHZ/0.25V
300.0
0.90
NR4015-220□-S-Z
22.0
100KHZ/0.25V
400.0
0.72
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR4018 Series/CR4018系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR4018-1R0□-S-Z
1.0
100KHZ/0.25V
23.0
4.50
NR4018-1R5□-S-Z
1.5
100KHZ/0.25V
33.0
3.35
NR4018-2R2□-S-Z
2.2
100KHZ/0.25V
44.0
2.70
NR4018-3R3□-S-Z
3.3
100KHZ/0.25V
70.0
2.45
NR4018-4R7□-S-Z
4.7
100KHZ/0.25V
90.0
1.70
NR4018-5R6□-S-Z
5.6
100KHZ/0.25V
103.0
1.60
NR4018-6R8□-S-Z
6.8
100KHZ/0.25V
124.0
1.45
NR4018-100□-S-Z
10.0
100KHZ/0.25V
200.0
1.30
NR4018-150□-S-Z
15.0
100KHZ/0.25V
268.0
0.94
NR4018-220□-S-Z
22.0
100KHZ/0.25V
390.0
0.80
NR4018-330□-S-Z
33.0
100KHZ/0.25V
560.0
0.65
NR4018-470□-S-Z
47.0
100KHZ/0.25V
756.0
0.57
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR4020 Series/CR4020系列電子特性規格
Part Number
Inductance
Test Freq.
DCR (mΩ)
IDC (A)
(μH)
(Hz)
(max)
(max)
產品料號
電感值 (L)
測試頻率
直流阻抗
定格電流
NR4020-1R0□-S-Z
1.0
100KHZ/0.25V
29.0
5.10
NR4020-1R2□-S-Z
1.2
100KHZ/0.25V
29.0
4.78
NR4020-1R5□-S-Z
1.5
100KHZ/0.25V
35.0
4.45
NR4020-2R2□-S-Z
2.2
100KHZ/0.25V
40.0
3.20
NR4020-3R3□-S-Z
3.3
100KHZ/0.25V
70.0
3.10
NR4020-3R6□-S-Z
3.6
100KHZ/0.25V
70.0
2.80
NR4020-4R7□-S-Z
4.7
100KHZ/0.25V
75.0
2.35
NR4020-5R1□-S-Z
5.1
100KHZ/0.25V
85.0
2.30
NR4020-5R6□-S-Z
5.6
100KHZ/0.25V
90.0
2.20
NR4020-6R2□-S-Z
6.2
100KHZ/0.25V
115.0
2.15
NR4020-6R8□-S-Z
6.8
100KHZ/0.25V
125.0
2.20
NR4020-7R5□-S-Z
7.5
100KHZ/0.25V
135.0
1.85
NR4020-8R2□-S-Z
8.2
100KHZ/0.25V
145.0
1.75
NR4020-100□-S-Z
10.0
100KHZ/0.25V
165.0
1.60
NR4020-120□-S-Z
12.0
100KHZ/0.25V
175.0
1.50
NR4020-150□-S-Z
15.0
100KHZ/0.25V
230.0
1.35
NR4020-220□-S-Z
22.0
100KHZ/0.25V
350.0
1.05
Operating Temp. : －45℃ ~ ＋125℃
★Inductance drop=30% typ. at IDC.
■ Electrical Characteristics for CR4030 Series/CR4030系列電子特性規格
