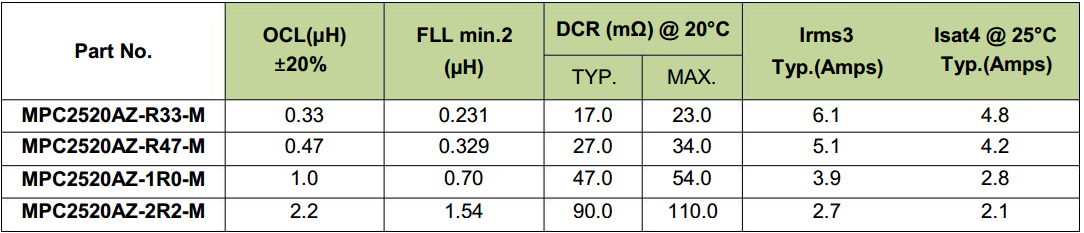

1 Open Circuit Inductance (OCL) Test Parameters: 1MHz, 0.25Vrms, 0.0Adc, @ +25°C.
2    Full Load Inductance (FLL) Test Parameters: 1MHz, 0.25Vrms, Isat @ +25°C.
3 Irms: DC current for an approximate temperature rise of 40°C without core loss. Derating is necessary for AC currents. PCB layout, trace thickness
and width, air-flow and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the
part not exceed 125°C under worst case operating conditions verified in the end application.
4 Isat: Peak current for approximately 30% roll off at +25°C.

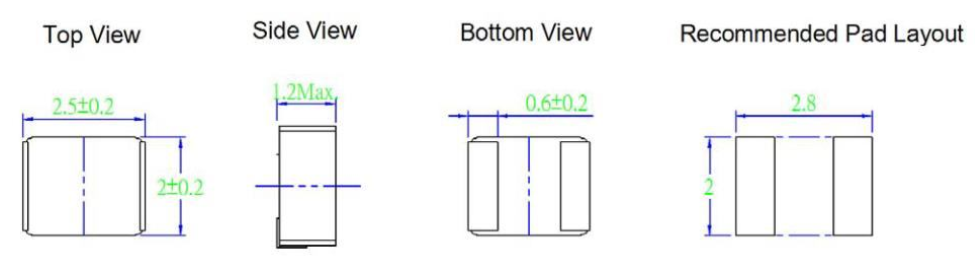

Dimensions-mm
